70490298 /7/6 Head Gasket – HS 2.8 & 2.8L 300 Tdi

$ 90.21
Purchase & earn 6 points!
Vendor
T-Time
0 out of 5

Items will be Shipped From The Vendor

Seed Canary Marketplace

  • Vendor is Paid Once Order is Shipped
  • Secure Payment Methods
  • Privacy & Discretion Guaranteed
  • 24/7 Customer Support

Secure & Encrypted Payment Methods

Bank Transfer
MasterCard
Visa
American Express

Have A Question?


Item will be shipped in 1 business day

Categories: , ,

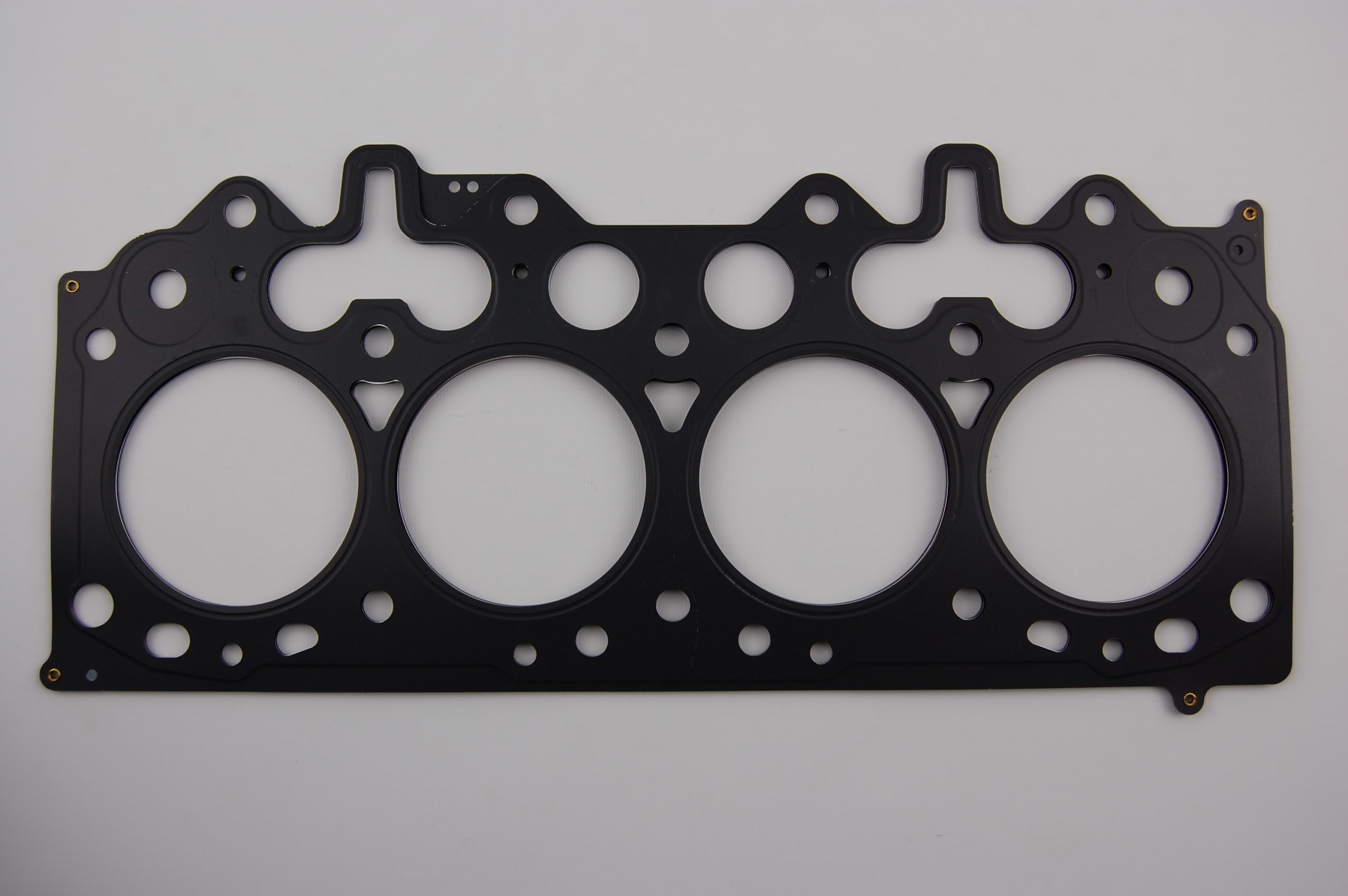

I’m Cylinder head gasket for the original HS 2.8 engine and 2.8L versions of the 300Tdi. 3x thicknesses available: 1 hole – 1.3mm. Piston protrusion: 0.5-0.6mm 2 hole – 1.4mm. Piston protrusion: 0.6-0.7mm 3 hole – 1.5mm. Piston protrusion: 0.7-0.8mm Note: There is not a thicker gasket available for the 2.8, in cases of high piston protrusion we recommend the pistons are topped. The HS 2.8 and 300tdi use the same head bolt locations, however, the HS2.8 uses 4x bolts with a diameter of 8mm not 10mm as per 300Tdi, therefore we have a special jig to open out these 4x holes to suit the 300Tdi cylinder block using 10mm bolts. These are the MOD variations of the gasket in the selection below. Manufacturer: MWM In stock
